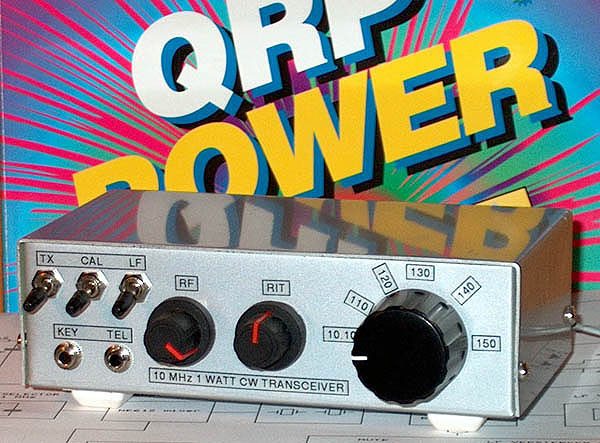

"NiceRig" 40-30
10 MHz CW transceiver 1 watt QRP,
the 40-30 designed by NE-QRP club

Favourite QRP transceiver

Favourite QRP transceiver
This is my favourite QRP transceiver and that's why it has it's place on my website.
The design is published in the ARRL book "QRP Power" and I do recommend you to buy it and read the articles about the modifications carried out by enthusiast experimenters. It was also published in QST of November 1994.
The rig is designed by the NE-QRP club as a club project. The original name for the rig is 40-40, a rig for 40 meters and cost to members was 40 dollar. I made the 40-30 version, indeed for 30 meters.
The original is a very nice design with full break in and I added some extra's to it:
  • Band filter with two tuned circuits at the receiver front end to improve image rejection.
  • Extra crystal in the IF filter (not really an improvement).
  • Extra LF amplifier for a loudspeaker.
  • Rit control.
  • LF switch for high / low LF gain.
  • Frequency marker generator for 10 kHz marker signals.
  • Some other not so important modifications.

    The design
    The design is straight forward and I do not think that you need a further explanation. If you want it, please read the book or QST.
    The receiver is a superhet with an IF of 8 MHz. The VFO range is from 2.1 to 2.15 MHz.
    Tuning is done by a single potentiometer, if you use a big knob, you do not need a 10 turn.
    All fixed inductances are standard available types (like big resistors). The variable ones are wound on 6 mm cores.
    It was not so easy to align the 8 MHz TX crystal oscillator exactly at the center frequency of the crystal filter. I needed an oscilloscope for that. That is why there is a 15 pF / 4.7 uH circuit in series with the 8 MHz crystal. You have to select these values for your crystal.
    After alignment of this 8 MHz TX oscillator, adjust the BFO for an 800 Hz audio tone when transmitting. In my version, a 4.7 pF capacitor in parallel with the 8 MHz BFO crystal was required to adjust it to the correct frequency.
    The side tone level can be varied by changing the value of the 4M7 resistor in the mute circuit.
    If the RIT is at zero position, you are exactly on frequency when the audio tone of the other station is equal to that of the side tone!

    Notes
    Built via the ugly method (dead bug method). Parts are soldered at both sides of the double sided unetched print.
    The VFO coil is wound on an iron core T50-2. For better mechanical stability, do not mount the iron core so close to the metal housing as I did.
    I used 3 transistors 2N4427 in parallel in the final stage because I had quite a lot of them. But it is also possible to use one 2N3553.
    DO NOT USE A 78L05 AS STABILIZER BUT A 7805! 780X TYPES ARE MUCH BETTER THAN 78L0X VERSIONS!

    Performance
    Sensitivity: 0.25 uV signals are readable
    3rd intercept: 3 dBm
    Sideband suppression: 36 dB
    Spurious responses: 5.87 MHz: -58 dB; 8.0 MHz: -59 dB; 12.25 MHz: -92 dB; 14.37 MHz: -84 dB
    RX current: 20 mA
    Transmit power: 1 W at 9 V; 1.5 W at 12 V; 2 W at 13.8 V
    Suppression of spurious emission: below 30 MHz: 43 dB, above 30 MHz: 55 dB

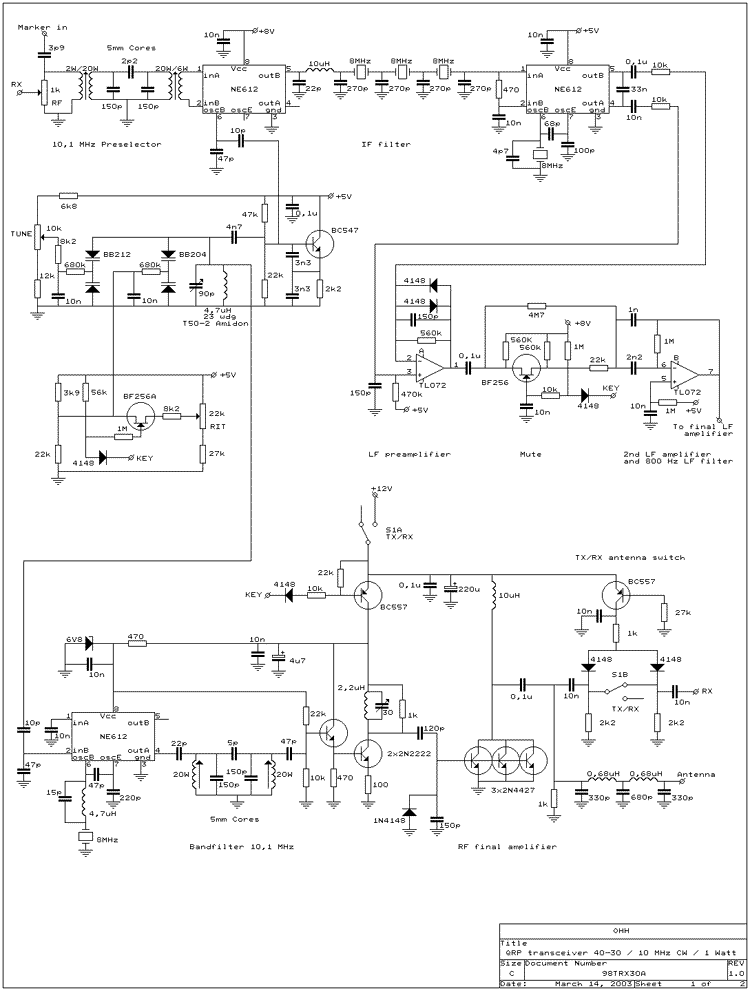

    Circuit diagram, part 1
    big diagram

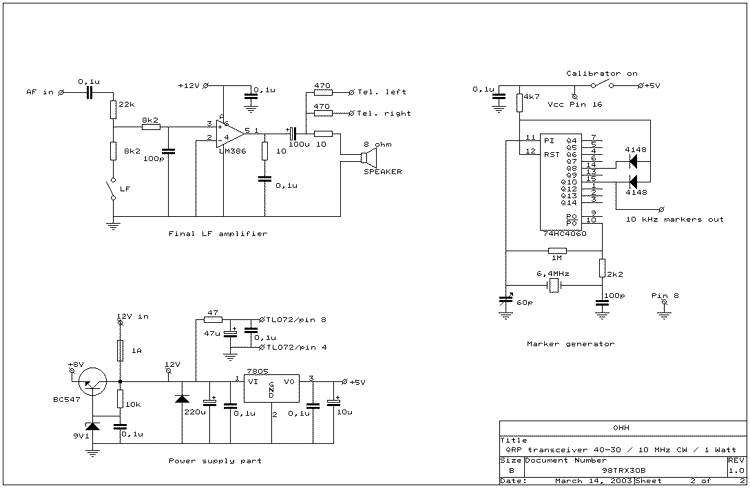

    Circuit diagram, part 2
    big diagram

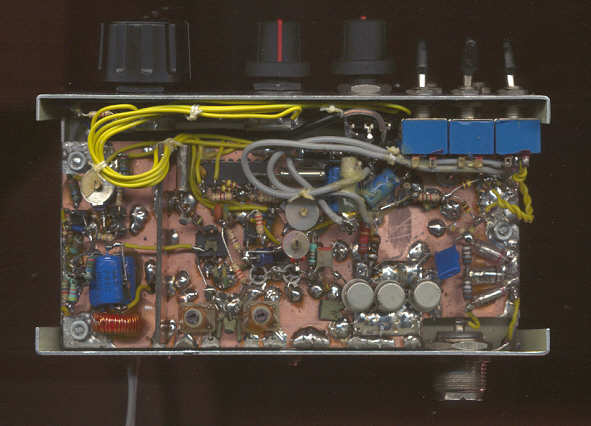

    Inside the transceiver


    Both sides of the unetched PCB are fitted with components
