HF TRANSCEIVER
This page will describe the construction of a multi band SSB transceiver.
Because I do 99% of my operating on my four favourite bands, I decided to build
a four band rig with provision for adding a fifth band later. The design can be
used on any band from 160M to 10M. Mine covers 80M, 40M, 17M, 10M.

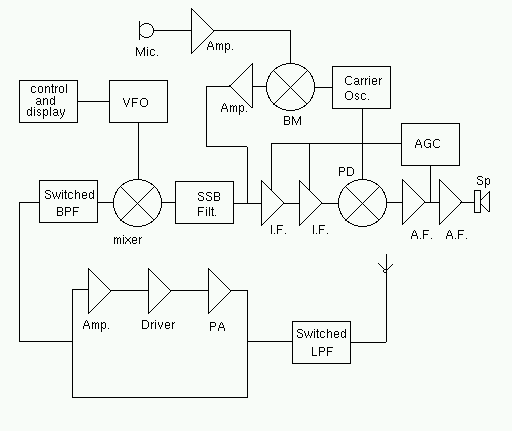

SIMPLIFIED BLOCK DIAGRAM
This is definitely not a project for the beginner. I will only provide a
circuit diagram and a brief description of each part of the transceiver. The
construction details and choice of construction method, PCB, ugly construction,
Stripboard, etc, are left to the individual constructor.
Band Pass Filter
Oscillator/Modulator unit
RX/TX Mixer
TX Amp
I.F. Amplifier
AGC
VFO
Driver
amplifier
Receive audio amplifier
Final amplifier
Low pass
filter
Digital
display and VFO stabiliser
