KE0VH
Digital Interface Schematic
page
The first
schematic below is an overall schematic of the completed project.

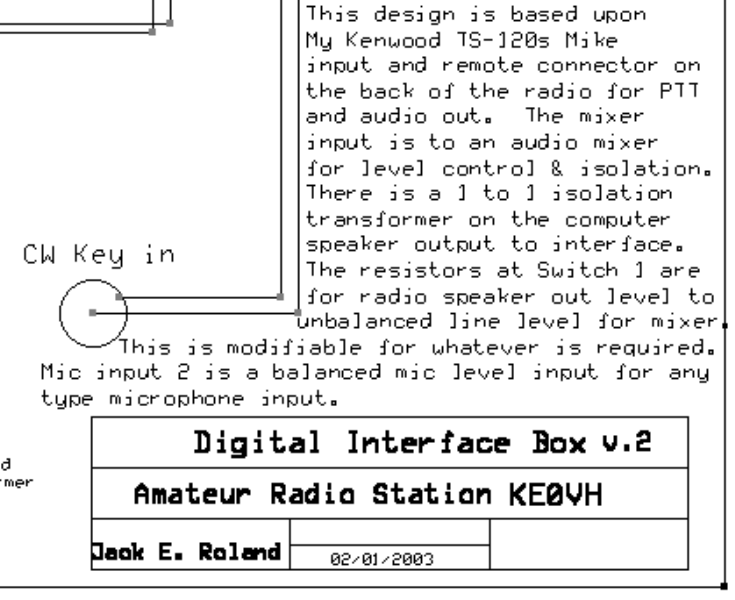

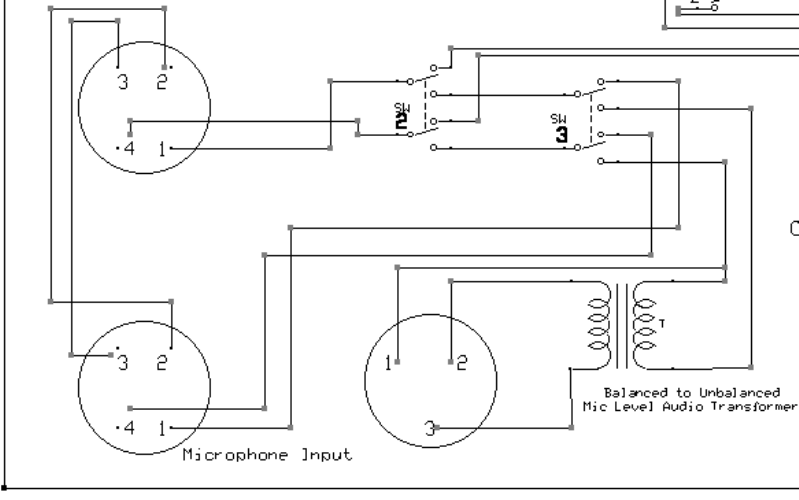

It
has been broken up into 4 separate sections below and enlarged to show
detail of each section. The separate sections are presented in order down
the page and numbered 1 thru 4 and are about 1/4 each of the overall
drawing.. If some of the connections on the 4 schematics below seem to
connect to nothing, just remember to refer to the overall schematic. You
may save each to your computer by right clicking on each and save to the
file or folder of your choice. |
