SNMP Tutorial Series: 5 Quick Steps to Understanding SNMP and
its Role in Network Alarm Monitoring
SNMP Tutorial Part 1: An Introduction
to SNMP
Since its creation in 1988 as a short-term solution
to manage elements in the growing Internet and other attached
networks, SNMP has achieved widespread acceptance. SNMP was derived
from its predecessor SGMP (Simple Gateway Management Protocol) and
was intended to be replaced by a solution based on the CMIS/CMIP
(Common Management Information Service/Protocol) architecture. This
long-term solution, however, never received the widespread
acceptance of SNMP.
SNMP is based on the manager/agent model consisting
of a manager, an agent, a database of management information,
managed objects and the network protocol. The manager provides the
interface between the human network manager and the management
system. The agent provides the interface between the manager and the
physical device(s) being managed (see the illustration above).
 |
| SNMP is based on the
manager/agent model of a network management
architecture. |
The manager and agent use a Management Information
Base (MIB) and a relatively small set of commands to exchange
information. The MIB is organized in a tree structure with
individual variables, such as point status or description, being
represented as leaves on the branches. A long numeric tag or object
identifier (OID) is used to distinguish each variable uniquely in
the MIB and in SNMP messages.
SNMP uses five basic messages (GET, GET-NEXT,
GET-RESPONSE, SET, and TRAP) to communicate between the manager and
the agent. The GET and GET-NEXT messages allow the manager to
request information for a specific variable. The agent, upon
receiving a GET or GET-NEXT message, will issue a GET-RESPONSE
message to the manager with either the information requested or an
error indication as to why the request cannot be processed. A SET
message allows the manager to request a change be made to the value
of a specific variable in the case of an alarm remote that will
operate a relay. The agent will then respond with a GET-RESPONSE
message indicating the change has been made or an error indication
as to why the change cannot be made. The TRAP message allows the
agent to spontaneously inform the manager of an ‘important’
event.
As you can see, most of the messages (GET, GET-NEXT,
and SET) are only issued by the SNMP manager. Because the TRAP
message is the only message capable of being initiated by an agent,
it is the message used by DPS Remote Telemetry Units (RTUs) to
report alarms. This notifies the SNMP manager as soon as an alarm
condition occurs, instead of waiting for the SNMP manager to
ask.
The small number of commands used is only one of the
reasons SNMP is "simple." The other simplifying factor is its
reliance on an unsupervised or connectionless communication link.
This simplicity has led directly to its widespread use, specifically
in the Internet Network Management Framework. Within this framework,
it is considered ‘robust’ because of the independence of the
managers from the agents, e.g. if an agent fails, the manager will
continue to function, or vice versa. The unsupervised communication
link does however create some interesting issues for network alarm
monitoring we will discuss more thoroughly in a later issue of our
tutorial.
SNMP Tutorial Part 2: The Management
Information Base (MIB)
 top
Each SNMP element manages specific objects with each
object having specific characteristics. Each object / characteristic
has a unique object identifier (OID) consisting of numbers separated
by decimal points (i.e., 1.3.6.1.4.1.2682.1). These object
identifiers naturally form a tree as shown below. The MIB associates
each OID with a readable label (i.e., dpsRTUAState) and various
other parameters related to the object. The MIB then serves as a
data dictionary or code book that is used to assemble and interpret
SNMP messages.
 |

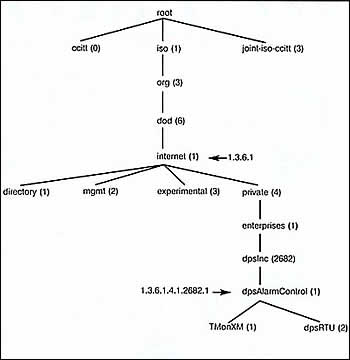

| The branch of the MIB
object identifier tree. |
When an SNMP manager wants to know the value of an
object / characteristic, such as the state of an alarm point, the
system name, or the element uptime, it will assemble a GET packet
that includes the OID for each object / characteristic of interest.
The element receives the request and looks up each OID in its code
book (MIB). If the OID is found (the object is managed by the
element), a response packet is assembled and sent with the current
value of the object / characteristic included. If the OID is not
found, a special error response is sent that identifies the
unmanaged object.
When an element sends a TRAP packet, it can include
OID and value information (bindings) to clarify the event. DPS
remote units send a comprehensive set of bindings with each TRAP to
maintain traditional telemetry event visibility. Well-designed SNMP
managers can use the bindings to correlate and manage the events.
SNMP managers will also generally display the readable labels to
facilitate user understanding and decision-making.
SNMP Tutorial Part 3: Understanding Packet
Types and Structure
top
This part of our tutorial on the Simple Network
Management Protocol (SNMP) examines the communication between
managers and agents. Basic serial telemetry protocols, like TBOS,
are byte oriented with a single byte exchanged to communicate.
Expanded serial telemetry protocols, like TABS, are packet oriented
with packets of bytes exchanged to communicate. The packets contain
header, data and checksum bytes. SNMP is also packet oriented with
the following SNMP v1 packets (Protocol Data Units or PDUs) used to
communicate:
- Get
- GetNext
- Set
- Trap
The manager sends a Get or GetNext to read a
variable or variables and the agent's response contains the
requested information if managed. The manager sends a Set to change
a variable or variables and the agent's response confirms the change
if allowed. The agent sends a Trap when a specific event occurs.
The image below shows the packet formats. Each
variable binding contains an identifier, a type and a value (if a
Set or response). The agent checks each identifier against its MIB
to determine whether the object is managed and changeable (if
processing a Set). The manager uses its MIB to display the readable
name of the variable and sometimes interpret its value.
 |

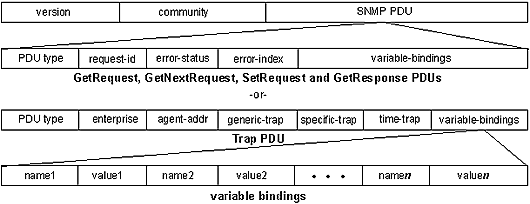

| SNMP Packet
Formats |
SNMP Tutorial Part 4: Layered
Communication
top
In this fourth article in our series, we continue to
examine the Simple Network Management Protocol (SNMP) focusing
specifically on the layered communication model used to exchange
information. Our last article focused on the structure of SNMP
messages, however an SNMP message is not sent by itself. It is
wrapped in the User Datagram Protocol (UDP), which in turn is
wrapped in the Internet Protocol (IP). These are commonly referred
to as layers and are based on a four-layer model developed by the
Department of Defense (you may recall the DoD origins of the
Internet).
Understanding this layered model makes it easier to
troubleshoot communication problems. When there is a problem,
you can simply trace it down...
|
SNMP resides in what is called the Application
layer, UDP resides in the Transport layer and IP resides in the
Internet layer (somewhat obvious). The fourth layer is the Network
Interface layer where the assembled packet is actually interfaced to
some kind of transport media (i.e., twisted pair copper, RG58
co-axial or fiber). While this multi-layer model may seem a bit
confusing, it effectively isolates the tasks of communication and
ultimately assists in designing and implementing a network.
Traversing the Layers
To illustrate the function of this layered model,
let's look at a single SNMP GET request from the agent's
perspective. The SNMP manager wants to know what the Agent's System
Name is and prepares a GET message for the appropriate OID. It then
passes the message to the UDP layer. The UDP layer adds a data block
that identifies the manager port to which the response packet should
be sent and the port on which it expects the SNMP agent to be
listening for messages. The packet thus formed is then passed to the
IP layer. Here a data block containing the IP and Media Access
addresses of the manager and the agent is added before the entire
assembled packet gets passed to the Network Interface layer. The
Network Interface layer verifies media access and availability and
places the packet on the media for transport.
After working its way across bridges and through
routers (the modern equivalent of over the rivers and through the
woods) based on the IP information, the packet finally arrives at
the agent. Here it passes through the same four layers in exactly
the opposite order as it did at the manager. First, it is pulled off
the media by the Network Interface layer. After confirming that the
packet is intact and valid, the Network Interface layer simply
passes it to the IP layer. The IP layer verifies the Media Access
and IP address and passes it on to the UDP layer where the target
port is checked for connected applications. If an application is
listening at the target port, the packet is passed to the
Application layer. If the listening application is the SNMP agent,
the GET request is processed as we have discussed in previous
articles. The agent response then follows the identical path in
reverse to reach the manager.
 |
| An SNMP message passes
through the protocol layers at both the manager and the agent.
Each layer addresses a specific communication task.
|
An Aid for Troubleshooting
Understanding this layered model makes it easier to
troubleshoot communication problems. When there is a problem, you
can simply trace it down, out one end, into, and up the other.
LAN/WAN link and activity status indicators provide some visibility
to the Network Interface layer. ICMP echo requests and responses
(Pings) provide some information regarding the proper functioning of
the IP layer. SNMP processing indicators can be used to verify the
passage of the packet through the UDP layer and the functioning of
the Application layer. Each step can be verified independently until
all steps are working correctly for end-to-end communication.
SNMP Tutorial Part 5: Common Mistakes Made
When Integrating SNMP and Non-SNMP Systems ... and How You Can Avoid
Them
top
SNMP is a standard protocol that has wide acceptance
in the industry and is flexible enough to describe almost anything.
Because of these advantages, many network managers have come to
believe that SNMP should be used for all network monitoring
applications.
SNMP certainly has its place in an effective telecom
network management solution, but this doesn't mean that any
off-the-shelf SNMP manager can provide adequate visibility and
control of your network.
The typical off-the-shelf SNMP manager is not
designed for displaying and processing telemetry data for effective
network monitoring, especially for the kind of real-world
monitoring tasks network managers most need performed. These
capabilities can be added to an SNMP manager, but it usually
requires substantial custom software development.
Before you buy … make sure you avoid these 7 common
mistakes
Relying on off-the-shelf SNMP systems for
mission-critical telemetry is a major mistake. If you’re switching
from traditional telemetry or integrating non-SNMP monitoring with
an SNMP-based system, an off-the-shelf SNMP manager will not provide
the detailed alarm data you expect. Before you commit to an SNMP
monitoring solution, you need to make sure it supports essential
network alarm monitoring functions.
There are seven common mistakes network managers
typically make when integrating SNMP and non-SNMP monitoring. Your
SNMP implementation will be successfully only if you can avoid
them.
- Selecting a
system that doesn’t provide complete, precise alarm
descriptions
A basic SNMP manager doesn't record the
location, time, severity, or a precise description of alarm
events. To adapt an off-the-shelf SNMP manager to monitor these
factors, you must create and maintain a master alarm list
representing all the monitored points in your network — and then
also create and maintain a database associating all the traps that
may be sent to the SNMP manager with the alarms on that list.
- Settling for a
system that can’t identify cleared alarms
Even more
database work is required to identify whether a trap corresponds
to an alarm condition or a clear condition. Creating this addition
to the trap association database often requires analyzing multiple
variable bindings within the trap packet.
- Not maintaining
a history of standing alarms
Relying solely on a basic
SNMP manager for network alarm monitoring can potentially result
in completely losing visibility of threats to your network. A
basic SNMP manager doesn't maintain a list of standing alarms.
Instead, the typical SNMP manager maintains an event log of newly
reported traps and a history log of acknowledged traps. As soon as
a trap is acknowledged, it is considered cleared. Imagine what
might happen to your network if a system operator acknowledges an
alarm, and then, for whatever reason, fails to correct the alarm
condition. Who would know the alarm is still standing?
- Not identifying
system operators
Basic SNMP managers do not record the
identity of the system operator who acknowledges an alarm. In the
example of the negligent system operator, it would be impossible
to determine who had made the mistake or to assign responsibility
for the resulting problems.
- Trusting a
system that’s insecure for multiple users
Out of the
box, the typical SNMP manager is not designed for multi-user
security. All traps are posted to one alarm list; all users may
view all alarms, and all users may acknowledge all alarms.
- Broadcasting all
alarms to all system users
Basic SNMP managers have no
built-in functions for organizing alarms by logical category,
posting the same alarm to multiple logical categories, or sorting
which alarms the user wants to see. If Jones is in charge of all
equipment for the Western region, and Smith is in charge of power
plants, both need to know about a generator failure in Tucson, but
neither one needs to know about all the alarms in the network. And
if one manager corrects the alarm condition and acknowledges the
alarm, the other manager needs to know it was acknowledged and by
whom. Unfortunately, standard SNMP managers will not support these
functions.
- Allowing
yourself to be bombarded by nuisance alarms
No SNMP
manager supports the advanced features necessary for best quality
telemetry monitoring, such as notifications escalation, legacy
protocol mediation, nuisance alarm silencing, automatic control
relay operation, and automatic notifications by pager and e-mail.
Requirements for Extensive Customization Reduce the Advantages
of an Open Standard
It is true that many, but not all, of these
functions can be added to standard SNMP managers, but implementing
network alarm monitoring in a basic SNMP manager usually involves a
substantial amount of custom software module development. Even when
pre-built software modules are available, they usually require
custom tweaking to perform exactly as you want them to.
The need for extensive customization eliminates the
advantage of using a simple open standard, and it is difficult to
justify significant development costs after purchasing an already
expensive SNMP manager. Why take the time, trouble, and expense to
recreate capabilities that are already present in a high-quality,
SNMP-capable network alarm management system?
The Right Role for Your SNMP manager
Relying on an SNMP manager for critical network
monitoring just doesn't take into account the tons of legacy and
non-SNMP equipment that is functioning perfectly fine out in
networks all over the world. The role of an SNMP manager is best
used for inventorying network devices and drilling down into
equipment details after your network monitoring system
notifies you of a problem.
SNMP can be an effective tool, but it's only one
item in your network alarm monitoring toolkit, and it can be used
more effectively when it is part of a total network monitoring
solution.
The T/Mon Network Alarm Monitoring Solution
If you are looking to avoid these 7 mistakes, then
the T/Mon network alarm monitoring system is for you. It is
specifically designed to avoid them. Network managers who rely on
T/Mon for their network alarm monitoring, notification, and control
comment, “Looking at one map and knowing it represents every
piece of equipment you’re monitoring in the field… that’s pretty
good peace of mind."
MySQL Error: You have
an error in your SQL syntax; check the manual that corresponds to
your MySQL server version for the right syntax to use near 'AND
c.link_id=b.link_id AND c.level=1 AND d.keyword_id=a.keyword_id
LIMIT 0,1' at line 1 |
 |
|
|
|
